How to Install a Skylight
Blog

Skylight Installation in the Fraser Valley: The VELUX Deck Mount Method

Written by Kory and Johnny Peters, Fraser Roofing, Chilliwack, BC | Last updated: October 2026

Safety First: Read This Before Touching Your Roof

A skylight install means cutting a hole in a perfectly good roof. Every minute that opening is exposed, your home is vulnerable to rain, wind, and structural compromise.

  • The moment the deck is cut, water can enter your home, have tarps and a helper staged below
  • Never start a skylight cut if rain is in the forecast within 48 hours
  • Cutting rafters without proper headers can cause structural failure
  • Falls from residential roofs account for the majority of construction fatalities in BC, harness up
  • Flashing errors are invisible until the first heavy rain, and then the damage is done
  • We strongly recommend hiring a professional for this job

Why We Wrote This Guide

The leaking skylights we open up have one thing in common: the flashing was done the hard way, with caulk, tar and hand bent metal standing in for the laps the manufacturer designed. The Fraser Valley gets 1,500 to 2,000 millimetres of rain a year, and that water finds every shortcut. This guide walks through how a VELUX deck mounted skylight goes into a shingle roof, the way we install them, so you know what a proper job looks like before anyone cuts your roof.

If you read through these steps and decide to tackle it yourself, follow the instructions that come in the box over anything here; they are written for that exact frame and kit. If you read through and decide to call us instead, we respect that too. Either way, an informed homeowner is a protected homeowner. For what we do on your roof, and the photos from our own jobs, see our skylight installation page.

Before You Begin: Planning the Install

Skill Level: Advanced, structural framing and precision flashing experience required

Time Required: 8-12 hours spread across 1-2 dry days

What sets the cost: fixed or venting, the size of the opening, and whether the framing needs changes. We look first, for free, then give you one written price. See what sets the cost of roofing work.

Deck Mount or Curb Mount: Which One This Guide Covers

There are two ways a skylight meets a sloped roof, and this guide covers the one we install on shingle roofs.

Deck mounted skylights, like the VELUX FS (fixed) and VS (venting) lines, sit directly on the roof deck. They are flashed with a kit made for that exact frame: an adhesive underlayment that wraps the frame, a sill flashing at the bottom, step flashings woven in with each shingle course, and a saddle across the top. Water is kept out by laps, not by sealant, so nothing depends on a bead of caulk surviving the next twenty winters. The VELUX shingle kit is made for roofs from 14 to 85 degrees, about 3:12 and steeper.

Curb mounted skylights sit on a raised wooden frame built on the roof. They are the answer on roofs too flat for a deck mount kit, and they have their own instructions. If that is your roof, our how-to library covers curb mounted skylights and skylights on flat roofs.

Tools You Will Need

Cutting and Framing:

  • Reciprocating saw with a bi-metal blade (you will hit nails in the deck)
  • Circular saw for headers if structural cutting is needed
  • Utility knife for shingle trimming

Layout and Fastening:

  • Hammer and pry bar
  • Tape measure, chalk line, and framing square
  • 4-foot level
  • Stud finder

Safety Gear:

  • Fall protection harness with roof anchor, non-negotiable
  • Safety glasses and dust mask
  • Work gloves rated for sheet metal
  • Tarps large enough to cover the opening if weather turns

Materials Checklist

  • VELUX deck mounted skylight in the size you need
  • VELUX flashing kit for shingles, sized to the skylight. It includes the adhesive skylight underlayment; confirm it is in the box before install day
  • Ice and water shield membrane, enough to cover the whole area around the opening
  • Framing lumber the same depth as your rafters, for headers and doubled framing
  • Joist hangers and structural screws if a rafter is cut
  • 1-1/4 inch roofing nails
  • Matching shingles from your last re-roof (if you kept extras)

What is not on the list: caulk, roofing cement and butyl tape. The kit does not need them to keep water out, and a skylight that depends on them is a skylight that will leak.

Step 1: Scout the Location from Both Sides

This step is where most DIY skylight installations go sideways. People pick a spot on the ceiling, cut, and discover a rafter, a duct, or a wiring run right in the opening.

From inside the attic or ceiling cavity:

  1. Map every rafter with a stud finder. Mark their edges on the drywall with painter's tape.
  2. Look for obstacles: electrical wiring, plumbing vents, HVAC ductwork. In many Fraser Valley homes built in the 1980s and 1990s, bathroom exhaust ducts run through the attic space at odd angles, verify clearance.
  3. Position the opening between rafters whenever possible. VELUX sizes are made to fit between standard rafter spacings, and avoiding a structural cut saves hours of work.
  4. Drive four reference nails through the ceiling at the corners of the proposed opening so you can locate them from the roof surface.

From the roof:

  1. Find the reference nails poking through the shingles.
  2. Confirm the pitch is 14 degrees or steeper, about 3:12. Many single-storey ranchers in Abbotsford and Chilliwack sit at 4:12, which is well inside the range. A flatter roof needs a curb mounted unit and a different method.
  3. Evaluate sun path and tree debris. South-facing skylights capture the most winter light (valuable in our overcast months). North-facing skylights deliver softer, more even illumination year-round. Avoid spots directly under cedar or fir branches, needle accumulation clogs skylight channels fast.

Step 2: Lay Out the Opening and Strip Shingles

  1. Snap chalk lines for the rough opening using the dimensions in the VELUX chart for that skylight size. The rough opening is not the same as the outside of the frame.
  2. Measure diagonals. If the two diagonal measurements differ by more than 1/4 inch, your layout is not square. Adjust before going further.
  3. Strip the shingles well back on all four sides, far enough to lay ice and water shield over the whole area and to weave the step flashing back in course by course. Pull every nail in the removal zone.
  4. Inspect the deck surface for soft spots or rot. In older Fraser Valley homes, we occasionally find moisture damage in the deck plywood near ridge vents or bathroom exhaust penetrations.

Step 3: Cut the Roof Deck

Point of No Return

Once you make this cut, your home is open to the sky. Check the Environment Canada forecast for your area one more time. If there is any chance of rain within 48 hours, postpone. We have seen homeowners in Rosedale start a skylight cut on a Thursday afternoon, get caught by a Friday morning rain system, and end up with saturated insulation and stained ceilings. Be patient.

  1. Drill starter holes at each corner of the opening.
  2. Cut the deck from above with a reciprocating saw fitted with a bi-metal blade. You will hit nails, a wood-only blade will bind and kick.
  3. Stay inside the chalk lines. You can always trim more; you cannot put plywood back.
  4. Have a helper below supporting the cutout section as you finish the last cut so it does not fall and damage the ceiling.
  5. Inspect the exposed framing. Look for rot, insect damage, or compromised connections. In homes near the Fraser River (Agassiz, Rosedale, Harrison) moisture migration into attic framing is more common than you might expect.

Step 4: Frame the Opening to Code

The BC Building Code calls for the framing to be doubled on each side of a roof opening wider than two rafter spacings, with headers top and bottom. When we open up an old skylight and the framing is not to code, or the blocking has rotted, it gets reblocked before anything else goes on: in 2x6, and full rafter depth where the rafters are bigger.

Structural Warning

Cutting a rafter removes load-bearing support. Incorrect reframing can cause the roof to sag, crack drywall below, and in extreme cases, collapse. If you are not confident in structural framing, call a professional. We are available at 604-728-0146 and can handle this portion even if you want to complete the rest yourself.

  1. Install the headers first, top and bottom of the opening, using lumber the same depth as the existing rafters. Secure them to the full-length rafters on each side with joist hangers and structural screws.
  2. Cut the intercepted rafter only after both headers are locked in.
  3. Double the framing on each side where the opening is wider than two rafter spacings.
  4. Verify zero deflection. Push and pull the framing, nothing should move or flex.

Step 5: Ice and Water Shield Over the Whole Area

Not a narrow strip around the hole. We lay self adhering ice and water shield across the whole area around the opening, starting with the bottom sheet, each upper sheet lapped over the one below it, and trim it tight to the edges of the opening. If water ever gets past the metal, this is what it meets.

Ice and water shield laid across the whole area around a skylight opening on a Chilliwack re-roof by Fraser Roofing

Step 6: Set the Skylight on the Deck

  1. Centre the skylight over the rough opening using the alignment notches on the frame.
  2. Check it is square and level. Measure the diagonals of the frame. A frame that is out by a few millimetres throws off every piece of flashing that follows, and a venting unit will bind.
  3. Fasten it with the supplied 1-1/4 inch nails, one in each pre-punched hole of the mounting flange. There is no curb to build: a deck mounted skylight sits directly on the deck.
  4. If the skylight vents, test it now, before the flashing goes on and before the interior is finished.

Step 7: Wrap the Frame in the Adhesive Underlayment

This is the step most often skipped, and it is the one VELUX is firm about. The adhesive skylight underlayment that comes with the flashing kit wraps the bottom, both sides and the top of the frame, before any metal goes on.

  1. Bottom piece first, up the frame and out onto the shield below.
  2. Then both sides, each lapping over the bottom piece.
  3. The top piece last, lapping over the sides. Every piece sits on top of the one below it, the same rule as shingles.
  4. Press it down firmly into every corner. No exposed frame or deck should be left around the unit.

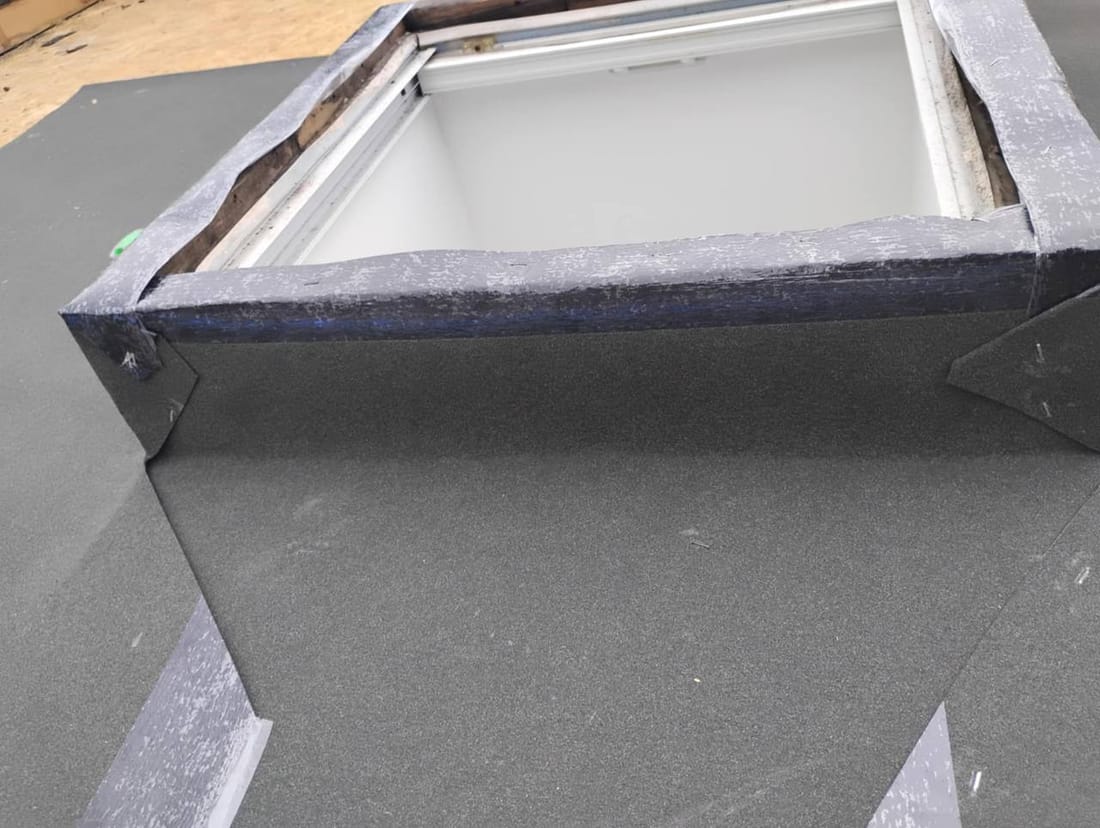

Skylight wrapped and the whole area sealed with peel-and-stick membrane, ready to flash and shingle, on a Chilliwack re-roof by Fraser Roofing

Step 8: Shingle Up to the Skylight and Fit the Sill Flashing

  1. Shingle up to the bottom of the skylight, keeping your normal exposure and nailing pattern.
  2. Fit the sill flashing tight against the bottom of the frame, over those shingles. Its pleated apron forms down onto the roof.
  3. Fasten it with roofing nails where the kit instructions show, and nowhere else.

Step 9: Weave the Step Flashing Up Both Sides

Step flashing is where skylight installations succeed or fail, and it is the fault we find most often on the leaking skylights we open.

  1. Begin at the bottom corner of each side, where the sill flashing ends.
  2. One step flashing per shingle course. Lay a course, set a step flashing on it against the frame, then the next course over that.
  3. Overlap each piece over the one below by at least 3-1/2 inches (90 mm). The upper piece always goes over the lower piece, water flows down, never up under a lap.
  4. Fasten each piece only where the kit instructions show. A nail through the metal near the frame is a hole in the channel the water runs down.
  5. No caulk between the pieces. The laps do the work.

Step 10: Fit the Saddle Flashing Across the Top

The saddle carries all the water coming down the roof above the skylight and splits it around both sides. It goes across the uphill side of the frame, over the top step flashings, and the shingles above lap down over its upper flange. Get that order backwards, with the saddle laid over the shingles above, and water running down the roof slides behind the metal and into the opening. We have repaired this exact mistake on homes in Agassiz, Chilliwack, and Harrison.

  1. Fit the saddle over the top step flashings on both sides.
  2. Fasten it where the kit instructions show.

Step 11: Shingle Over the Top and Finish

  1. Lay the shingles above down over the saddle's upper flange, keeping them clear of the channel the kit leaves for water to run off the saddle.
  2. Cut shingles to fit along the sides with a fresh utility knife blade for clean edges.
  3. Nail above the flashing line, never through the flashing itself.
  4. Check every lap from top to bottom. If something is not lapping the way water flows, fix the lap. Do not caulk it.
  5. Clean all debris from the roof. Shingle granules and offcuts in flashing channels cause water dams during rain.

Interior Finishing

Once the skylight is closed in from outside, frame the interior light shaft with 2x4 studs from the roof opening down to the ceiling opening. Insulate the shaft walls with batt insulation and vapour barrier, this is critical in the Fraser Valley where interior humidity in winter can condense on cold skylight shaft walls and drip onto finishes. Finish with drywall, tape, and paint. Angle the shaft walls to spread light into the room rather than creating a narrow tunnel.

Five Mistakes That Cause Fraser Valley Skylight Failures

1. Step flashing installed over shingles instead of woven between courses

Each step flashing piece must sit between two shingle courses: over the one below, under the one above. Laying flashing on top of a finished shingle field is not step flashing, it is a leak waiting for the next atmospheric river.

2. Saddle flashing laid over the upslope shingles

The shingles above must lap down over the saddle. Water runs downhill and must always pass from shingle to flashing without any reverse lap.

3. Cutting a rafter without installing headers first

The rafter is holding up your roof. Cutting it before the headers are locked in transfers load to adjacent rafters instantly and unevenly. We have seen sagging ridgelines on homes in Chilliwack from exactly this sequence error.

4. Starting the cut without checking the 48-hour forecast

The Fraser Valley's weather can shift overnight. A clear morning forecast can turn into a rain warning by afternoon. Check Environment Canada, not just your phone app, and build in a full 48-hour dry window before making the first cut.

5. Skipping the adhesive underlayment, or caulking instead of lapping

The underlayment wrap is what makes the kit watertight without sealant, and leaving it out, or swapping the kit's laps for caulk and roofing cement, is how a skylight starts leaking a few winters later. It also costs you the manufacturer's installation warranty: VELUX's covers skylights flashed with VELUX flashing installed to VELUX's instructions. The terms are on velux.ca.

When to Call a Professional

We believe in giving homeowners honest information, even when it means they might do the work themselves. But skylight installation is one of the few jobs where we genuinely recommend professional installation for most homeowners. The consequences of a flashing mistake are not visible until a heavy rain event, and by then the water has been traveling through your roof deck, insulation, and ceiling for hours.

If any of the following apply, we would encourage you to call us or another qualified roofer:

  • The opening requires cutting through a rafter
  • The old skylight's framing may not be to code
  • Your roof pitch is near the bottom of the kit's range
  • You do not have experience with step flashing sequences
  • The skylight is on a second-storey roof with limited safe access

At Fraser Roofing, we install VELUX skylights with VELUX's own flashing kits, the way this guide describes. We are Red Seal Journeyman Boilermakers who moved from industrial boilermaking to residential roofing, and that precision shows in our flashing. Our installation carries our 10 year labour warranty. See how we install skylights, or call us to look at yours.


Frequently Asked Questions

How much does skylight installation cost in the Fraser Valley?

What moves the cost is whether the skylight is fixed or venting, the size of the opening, whether the framing has to change to meet code, the roof pitch, and the flashing kit it needs. We do not publish prices because every roof is different. The inspection is free, and after it you get one written price that says what is included and what is not.

A skylight curb is being waterproofed with a black rubberized peel-and-stick membrane. Fraser Roofing
How much does skylight installation cost in the Fraser Valley

Can you install a skylight on a low-slope roof in BC?

The VELUX shingle flashing kit is made for roofs from 14 to 85 degrees, about 3:12 and steeper. Many rancher-style homes in Chilliwack and Abbotsford sit around 4:12, which is well inside that range. A roof flatter than that needs a curb mounted skylight made for low slopes, flashed to its own instructions.

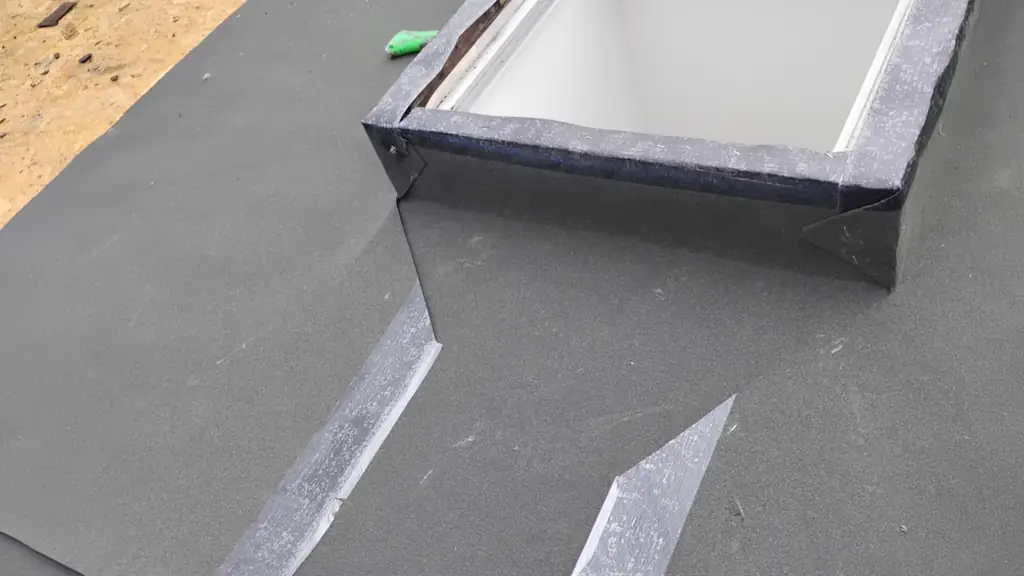

Close-up of a skylight curb being flashed with black peel-and-stick membrane on a flat grey roof surface. Fraser Roofing
Can you install a skylight on a low-slope roof in BC

Why do skylights leak so often in BC?

The Fraser Valley receives 1,500 to 2,000 millimetres of rain a year, and long rain events test every lap. Skylights leak when step flashing is not woven with the shingles, when the saddle is laid over the shingles above instead of under them, when the frame was never wrapped in underlayment, or when caulk was used in place of the manufacturer's flashing. A skylight flashed with its own kit, installed to the instructions, keeps water out with laps, not sealant.

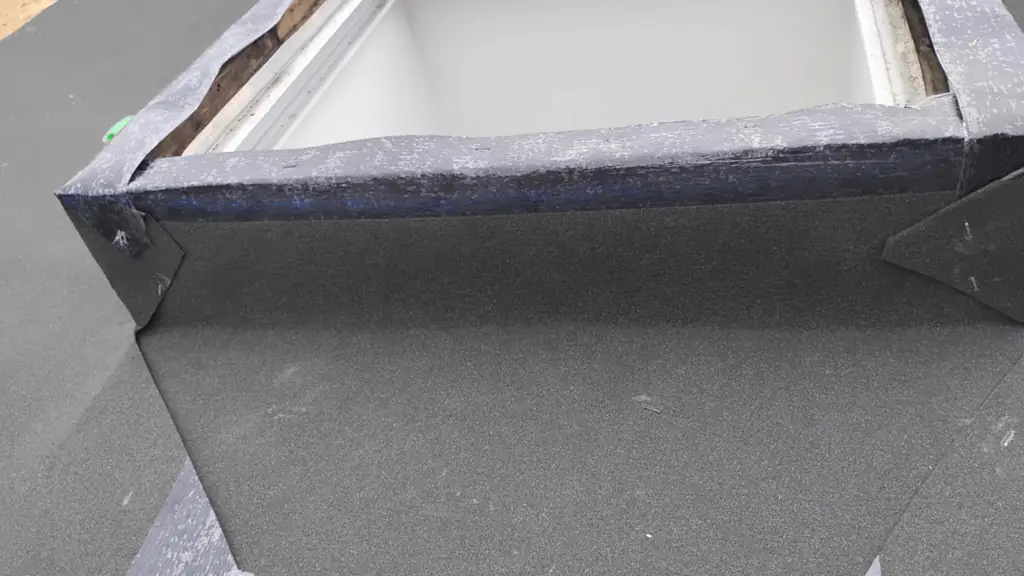

A skylight curb is being waterproofed with a black rubberized peel-and-stick membrane. Fraser Roofing
Why do skylights leak so often in BC

What is the best time of year to install a skylight in the Fraser Valley?

Late May through September gives the most reliable dry windows. You need at least 48 consecutive dry hours to safely cut the roof, frame, flash, and close in the skylight. We have installed skylights in shoulder seasons by watching forecasts closely and keeping tarps staged, but summer installations carry the least weather risk.

A close-up of two new skylight curbs being flashed with grey membrane on top of plywood decking. Fraser Roofing
What is the best time of year to install a skylight in the Fraser Valley

Should I choose a fixed or venting skylight?

Venting skylights are worth the upgrade in the Fraser Valley. Our humid summers create indoor moisture buildup, and a venting skylight helps exhaust warm, damp air from kitchens and bathrooms. Fixed skylights cost less and have fewer mechanical parts to maintain, making them a good choice for hallways and living rooms where ventilation is not the priority.

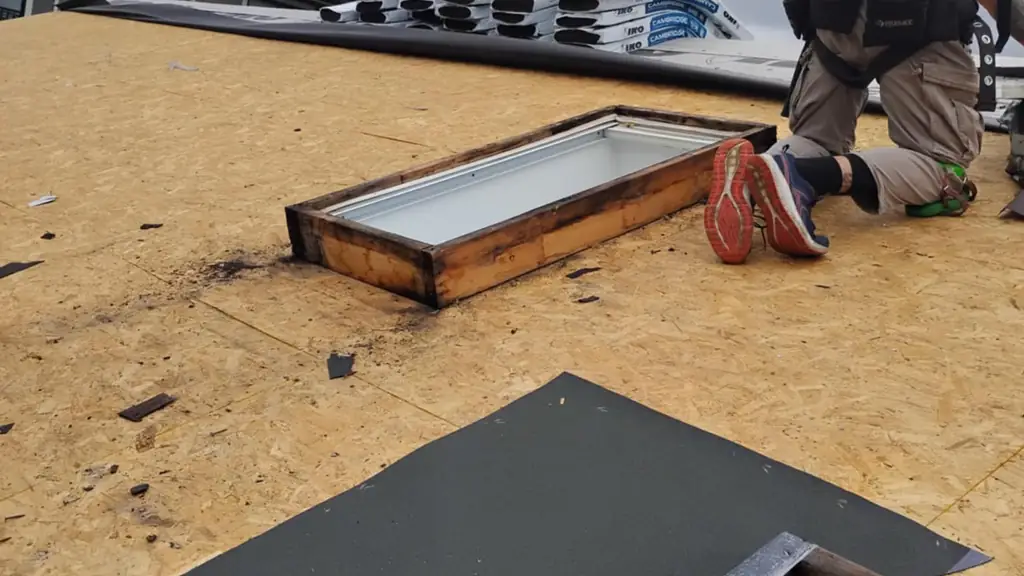

A worker kneels at a skylight opening on a bare plywood roof deck, with a section of the deck covered in black synthetic underlayment. Fraser Roofing
Should I choose a fixed or venting skylight
